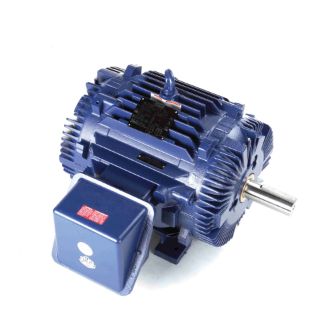

824538.00 LEE

Name: 824538.00 LEE
Brand: Leeson Electric
SKU: 824538.00 LEE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

824538.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

LEESON® AC Motor, Continuous-Duty, Chiller/Cooling Tower Motors, Fan and Blower Motors, General Purpose HVAC Motors Application, Severe Duty Motors, Inverter Ready Special Features, 60 hp, 230/460 VAC, 144/72 A, 60 Hz Frequency, 3 ph ph, 1775 rpm Speed, Totally Enclosed Air Over Enclosure, 364TV Frame, 2.38 in Dia x 5.88 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 177 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Constant Torque Speed, 10:1 Variable Torque Speed, 29.01 in L x 27.63 in W x 22.48 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

Severe Duty Motors, Inverter Ready

Specifications

Amperage Rating:	144/72 A
Application Type:	Chiller/Cooling Tower Motors, Fan and Blower Motors, General Purpose HVAC Motors
Bearing Type:	Ball
Constant Torque Speed Range:	10:1
Country of Origin:	US
Dimensions:	29.01 in L x 27.63 in W x 22.48 in H
Enclosure Type:	Totally Enclosed Air Over
Frame:	364TV
Frequency Rating:	60 Hz
Horsepower:	60 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	2.38 in Dia x 5.88 in L
Speed:	1775 rpm
Temperature Rating:	40 deg C
Torque Rating:	177 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
