825076.00 LEE

Name: 825076.00 LEE
Brand: Leeson Electric
SKU: 825076.00 LEE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

825076.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty Low Voltage

Description

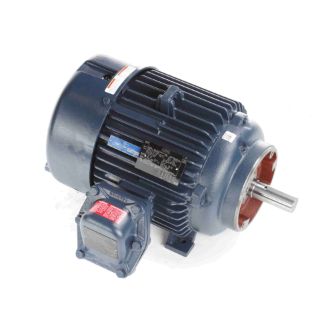

LEESON® AC Motor, Continuous-Duty Low Voltage, Explosion Proof AC Motors Special Features, 15 hp, 230/460 VAC, 35/17.5 A, 60 Hz Frequency, 3 ph ph, 3550 rpm Speed, EPFC Enclosure, 254TC Frame, 1.63 in Dia x 4 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 22.2 ft-lb Torque, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Variable Torque Speed, 24.02 in L x 20.83 in W x 14.07 in H Dimensions

Application

Commercial and Industrial Applications

Standards

NEC 500 | NFPA 497M

Features

Explosion Proof AC Motors

Specifications

Amperage Rating:	35/17.5 A
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	24.02 in L x 20.83 in W x 14.07 in H
Enclosure Type:	EPFC
Frame:	254TC
Frequency Rating:	60 Hz
Horsepower:	15 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	C-Face/Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.63 in Dia x 4 in L
Speed:	3550 rpm
Temperature Rating:	40 deg C
Torque Rating:	22.2 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
