825190.00 LEE

Name: 825190.00 LEE
Brand: Leeson Electric
SKU: 825190.00 LEE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

825190.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

2-Pole Continuous Duty

Description

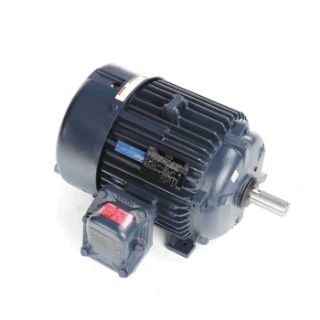

Leeson® Motor, 2-Pole Continuous Duty, NEMA Motor Application, Induction Run Squirrel Cage Motor Special Features, 5 hp, 230/460 V, 11.8/5.9 A, 60 Hz Frequency, 3 ph, 3505 rpm Speed, Explosion Proof Fan Cooled Enclosure, 184TC Frame, 1.125 in Dia x 2.62 in L Shaft, Reversible Rotation, 1 Service Factor, Double Shielded Ball Bearing, Round Mounting, 40 deg C, Insulation Class: Class B, Cast Iron, 18.62 in L x 15.21 in W x 11.87 in H Dimensions

Standards

CSA Certified | Temperature Code T3B | UL Listed

Features

Induction Run Squirrel Cage Motor

Specifications

Amperage Rating:	11.8/5.9 A
Application Type:	NEMA Motor
Bearing Type:	Double Shielded Ball
Dimensions:	18.62 in L x 15.21 in W x 11.87 in H
Enclosure Type:	Explosion Proof Fan Cooled
Frame:	184TC
Frequency Rating:	60 Hz
Horsepower:	5 hp
Insulation Class:	Class B
Material:	Cast Iron
Mounting Type:	Round
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1
Shaft Size:	1.125 in Dia x 2.62 in L
Speed:	3505 rpm
Temperature Rating:	40 deg C
Voltage Rating:	230/460 V
