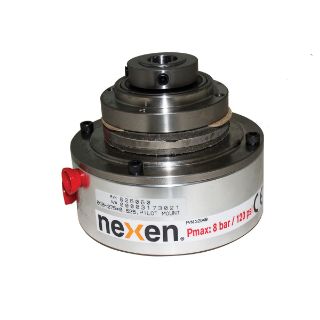

826050 NEX

The BCB-275 and FCB-450 are combination clutch-brakes. Must be mounted on the driven shaft only. Sheave mount unit comes with 1 to 3 V groove sheave. 2-pilot mount units offer standard bore sizes of 1/2 in and 5/8 in. For inline applications, select the optional coupling half. Single piston engagement to eliminate clutch and brake overlap. Fits up to 2.2 kW, 3 hp drive motors. Easy retrofitting of existing Nexen® clutch-brakes; pilot dimensions are identical to the original Nexen® clutch-brake series.

Nexen® Air Champ® Combination Shaft Mounted Clutch/Brake, Driven Air Actuated Open, 80 ft-lb Brake/80 in-lb Clutch Torque, 0.402 cu-in New/1.26 cu-in Worn Out Brake, 0.402 cu-in New/1.26 cu-in Worn Out Clutch Air Volume, 3600 rpm Maximum, 80 psi Maximum, 5/8 in Bore, 32 to 150 deg F, Black Oxide, 4.25 in Dia x 3.62 in L Dimensions
