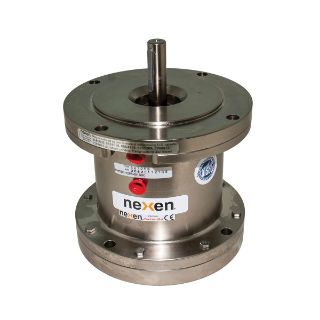

827250 NEX

FMCBE flange mounted clutch-brakes are designed for controlled starts and stops in hostile, dirty environments. Totally enclosed design prevents contaminants from interfering with operation of the units while keeping worn friction material from escaping into the environment. Flange mounts directly to motors and reducers. Compatible with C-face motors up to 20 hp. Optional foot mount is available for belt drive applications. Optional input unit allows you to incorporate pulleys or couplings into your application.

Nexen® Air Champ® Combination Flange/Foot Mounted Clutch/Brake, Air Actuated NEMA C-Face Enclosed, 210 ft-lb Brake/190 in-lb Clutch Torque, 1.334 cu-in New/2.044 cu-in Worn Out Brake, 1.299 cu-in New/1.89 cu-in Worn Out Clutch Air Volume, 1800 rpm Maximum, 80 psi Maximum, 0.6255 in Bore, 32 to 150 deg F, Nickel Plated, 6.5 in Dia x 7.58 in L Dimensions
