Home / 827812 NEX

827812 NEX

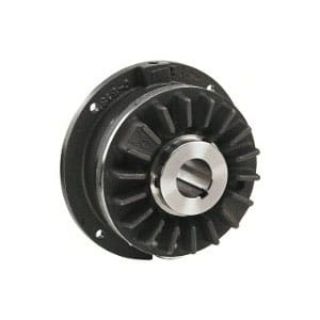

Picture of 827812 NEX
Actual Product May Vary From Image

Product Details

Manufacturer:
Nexen
Manufacturer part number:
827812
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$638.00 / EA

Description

Brand Name

Nexen®

Type

Air Actuated/Spring Released Standard Coefficient

Description

Nexen® Shaft Mount Friction Brake, Air Actuated/Spring Released Standard Coefficient, Series: S-450, 440 in-lb Static Torque, 0.629 cu-in New/1.422 cu-in Worn Out Air Volume, 1800 rpm Maximum, 80 psi Maximum, 1 in Bore, 32 to 150 deg F, Black Oxide, 5.94 in OD x 2.51 in L Dimensions

Application

For stopping and holding

Standards

CE Certified and RoHS Compliant

Features

Air engaged shaft mounted straight bore flange mountable brake

Specifications

Air Volume:0.629 cu-in New/1.422 cu-in Worn Out
Bore Diameter:1 in
Country of Origin:US
Dimensions:5.94 in OD x 2.51 in L
Finish:Black Oxide
Maximum Pressure:80 psi
Maximum Speed:1800 rpm
Series:S-450
Temperature Rating:32 to 150 deg F
Torque Rating:440 in-lb Static
