Home / 827819 NEX

827819 NEX

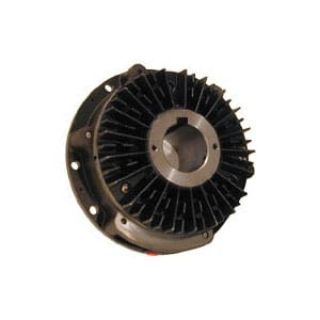

Picture of 827819 NEX
Actual Product May Vary From Image

Product Details

Manufacturer:
Nexen
Manufacturer part number:
827819
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$644.00 / EA

Description

Brand Name

Nexen®

Type

Air Actuated/Spring Released Low Coefficient

Description

Nexen® Single Actuator Tension Control Brake, Air Actuated/Spring Released Low Coefficient, Series: S-450A, 224 in-lb Dynamic Torque, 0.629 cu-in New/1.422 cu-in Worn Out Air Volume, 1800 rpm Maximum, 80 psi Maximum, 0 to 1-1/8 in Bore, 32 to 150 deg F, Black Oxide, 5.94 in OD x 2.51 in L Dimensions

Application

For tensioning

Standards

CE Certified and RoHS Compliant

Features

  • Low cost air cooled brakes for narrow range tension control applications
  • High thermal performance at low cost

Specifications

Air Volume:0.629 cu-in New/1.422 cu-in Worn Out
Bore Diameter:0 to 1-1/8 in
Country of Origin:US
Dimensions:5.94 in OD x 2.51 in L
Finish:Black Oxide
Maximum Pressure:80 psi
Maximum Speed:1800 rpm
Series:S-450A
Temperature Rating:32 to 150 deg F
Torque Rating:224 in-lb Dynamic
