Home / 827821 NEX

827821 NEX

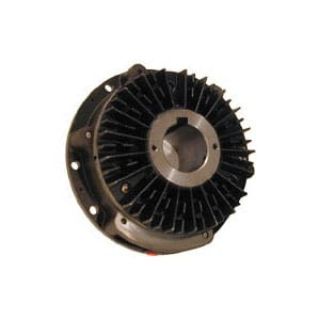

Picture of 827821 NEX
Actual Product May Vary From Image

Product Details

Manufacturer:
Nexen
Manufacturer part number:
827821
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$719.00 / EA

Description

Brand Name

Nexen®

Type

Air Actuated/Spring Released Low Coefficient

Description

Nexen® Single Actuator Tension Control Brake, Air Actuated/Spring Released Low Coefficient, Series: S-450A, 25 N-m Dynamic Torque, 10.31 cu-cm New/23.3 cu-cm Worn Out Air Volume, 1800 rpm Maximum, 6 bar Maximum, 25 mm Bore, 32 to 150 deg F, Black Oxide, 151 mm OD x 64 mm L Dimensions

Application

For tensioning

Standards

CE Certified and RoHS Compliant

Features

  • Low cost air cooled brakes for narrow range tension control applications
  • High thermal performance at low cost

Specifications

Air Volume:10.31 cu-cm New/23.3 cu-cm Worn Out
Bore Diameter:25 mm
Country of Origin:US
Dimensions:151 mm OD x 64 mm L
Finish:Black Oxide
Maximum Pressure:6 bar
Maximum Speed:1800 rpm
Series:S-450A
Temperature Rating:32 to 150 deg F
Torque Rating:25 N-m Dynamic
