Name: 827900 NEX
Brand: Nexen
SKU: 827900 NEX
Price: 856.00 USD
Availability: OutOfStock

827900 NEX

Actual Product May Vary From Image

Product Details

Manufacturer:

Nexen

Manufacturer part number:

827900

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$856.00 / EA

Description

Brand Name

Nexen®

Type

Air Actuated/Spring Released Standard Coefficient

Description

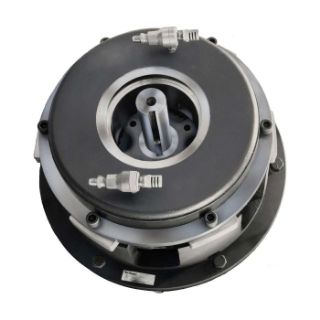

Nexen® Shaft Mount Friction Brake, Air Actuated/Spring Released Standard Coefficient, Series: S-600, 840 in-lb Static Torque, 1.024 cu-in New/2.108 cu-in Worn Out Air Volume, 1800 rpm Maximum, 80 psi Maximum, 0 to 1-3/8 in Bore, 32 to 150 deg F, Black Oxide, 7.19 in OD x 3.2 in L Dimensions

Application

For stopping and holding

Standards

CE Certified and RoHS Compliant

Features

Air engaged shaft mounted straight bore flange mountable brake

Specifications

Air Volume:	1.024 cu-in New/2.108 cu-in Worn Out
Bore Diameter:	0 to 1-3/8 in
Country of Origin:	US
Dimensions:	7.19 in OD x 3.2 in L
Finish:	Black Oxide
Maximum Pressure:	80 psi
Maximum Speed:	1800 rpm
Series:	S-600
Temperature Rating:	32 to 150 deg F
Torque Rating:	840 in-lb Static
