Name: 827923 NEX
Brand: Nexen
SKU: 827923 NEX
Price: 891.00 USD
Availability: OutOfStock

827923 NEX

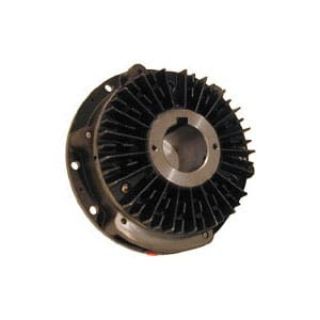

Actual Product May Vary From Image

Product Details

Manufacturer:

Nexen

Manufacturer part number:

827923

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$891.00 / EA

Description

Brand Name

Nexen®

Type

Air Actuated/Spring Released Low Coefficient

Description

Nexen® Single Actuator Tension Control Brake, Air Actuated/Spring Released Low Coefficient, Series: S-600A, 428 in-lb Dynamic Torque, 1.024 cu-in New/2.108 cu-in Worn Out Air Volume, 1800 rpm Maximum, 80 psi Maximum, 1-1/4 in Bore, 32 to 150 deg F, Black Oxide, 7.19 in OD x 3.19 in L Dimensions

Application

For tensioning

Standards

CE Certified and RoHS Compliant

Features

Low cost air cooled brakes for narrow range tension control applications
High thermal performance at low cost

Specifications

Air Volume:	1.024 cu-in New/2.108 cu-in Worn Out
Bore Diameter:	1-1/4 in
Country of Origin:	US
Dimensions:	7.19 in OD x 3.19 in L
Finish:	Black Oxide
Maximum Pressure:	80 psi
Maximum Speed:	1800 rpm
Series:	S-600A
Temperature Rating:	32 to 150 deg F
Torque Rating:	428 in-lb Dynamic
