Name: 828100 NEX
Brand: Nexen
SKU: 828100 NEX
Price: 1,610.00 USD
Availability: OutOfStock

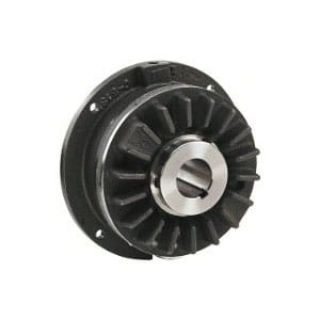

828100 NEX

Actual Product May Vary From Image

Product Details

Manufacturer:

Nexen

Manufacturer part number:

828100

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$1,610.00 / EA

Description

Brand Name

Nexen®

Type

Air Actuated/Spring Released Standard Coefficient

Description

Nexen® Shaft Mount Friction Brake, Air Actuated/Spring Released Standard Coefficient, Series: S-1000, 3450 in-lb Static Torque, 1.847 cu-in New/10.707 cu-in Worn Out Air Volume, 1800 rpm Maximum, 80 psi Maximum, 0 to 2.938 in Bore, 32 to 150 deg F, Black Oxide, 11.88 in OD x 4.03 in L Dimensions

Application

For stopping and holding

Standards

CE Certified and RoHS Compliant

Features

Air engaged shaft mounted straight bore flange mountable brake

Specifications

Air Volume:	1.847 cu-in New/10.707 cu-in Worn Out
Bore Diameter:	0 to 2.938 in
Country of Origin:	US
Dimensions:	11.88 in OD x 4.03 in L
Finish:	Black Oxide
Maximum Pressure:	80 psi
Maximum Speed:	1800 rpm
Series:	S-1000
Temperature Rating:	32 to 150 deg F
Torque Rating:	3450 in-lb Static
