83-12-218-3 SHD

Name: 83-12-218-3 SHD
Brand: SolaHD (Emerson)
SKU: 83-12-218-3 SHD
Availability: OutOfStock

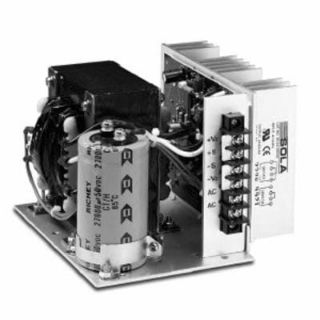

Actual Product May Vary From Image

Product Details

Manufacturer:

SolaHD (Emerson)

Manufacturer part number:

83-12-218-3

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

SolaHD

Type

Linear

Description

SolaHD DC Power Supply, Linear, Series: 83 Series, 104 to 127/208 to 254 VAC Input, 12 VDC Output, 22 W, 1.8 A, 50/60 Hz, Panel Mount, 4 in Width, 2-1/2 in Depth, 4-3/4 in Height

Application

Microprocessor Circuits, Instrumentation, Process Controls, CNC machinery, Control Circuits, Analog Circuits and Noise Sensitive Circuits

Standards

UL Recognized | CSA Certified

Features

Low noise output
Remote sensing
Designed for both bench and rack use
Completely protected short circuit proof and automatic foldback
Current limiting automatic reset
Isolated floating output
Built-in OVP on 5 VAC models
Terminal block
+/-0.1% regulation line and load
0.1% pk pard (ripple and noise)
10 mV rms periodic deviations
+/-5% minimum output voltage adjustment
Less than 50 msec transient recovery time
-40 to 85 deg C storage temperature
0 to 50 deg C operating temperature
0.03% temperature co-efficient
May be used positive or negative
Protected with automatic recovery short circuit protection
5% maximum allowable lead drop for remote sensing
120% rated maximum output current

Specifications

Amperage Rating:	1.8 A
Country of Origin:	US
Depth:	2-1/2 in
Frequency Rating:	50/60 Hz
Height:	4-3/4 in
Input Voltage:	104 to 127/208 to 254 VAC
Mounting Type:	Panel
Output Voltage:	12 VDC
Power Rating:	22 W
Series:	83 Series
Width:	4 in
