83-9421 IDE

Name: 83-9421 IDE
Brand: Ideal Industries
SKU: 83-9421 IDE
Price: 0.31 USD
Availability: OutOfStock

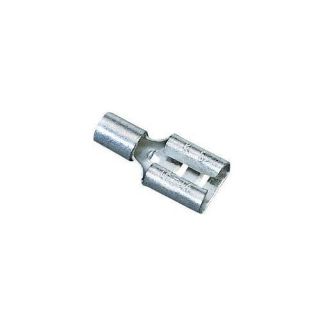

Actual Product May Vary From Image

Product Details

Manufacturer:

Ideal Industries

Manufacturer part number:

83-9421

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$0.31 / EA

Description

Brand Name

IDEAL®

Type

Bare

Alternate Supplier #

Grainger - 25C256

Description

The complete line of IDEAL® crimp terminals, disconnects and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color coded for easy identification and come in durable plastic packaging for easy storage.

IDEAL® Female Disconnect Terminal, Bare, 16 to 14 AWG Conductor, 0.11 x 0.02 in Tab, Shouldered Barrel, Crimp Terminal, 300 VAC, 221 deg F, Brass, TiN Plated, 0.63 in L x 0.126 in W Dimensions, Non-Insulated

Standards

RoHS Compliant

Features

Butted seam-construction prevents splitting under maximum pressure
Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
Tin plated brass construction for corrosion-resistance
Shouldered barrel insulation quickly positions terminal for proper crimping
Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
Brazed or butted seams prevent splitting
Funnel entry insulators
Beveled barrel openings provide easy wire entry
Clearly marked wire and stud ranges
Color coded insulation

Specifications

Barrel Type:	Shouldered
Conductor Size:	16 to 14 AWG
Country of Origin:	TW
Dimensions:	0.63 in L x 0.126 in W
Finish:	TiN Plated
Insulated:	Non-Insulated
Material:	Brass
Tab Size:	0.11 x 0.02 in
Temperature Rating:	221 deg F
Terminal Type:	Crimp
Voltage Rating:	300 VAC
