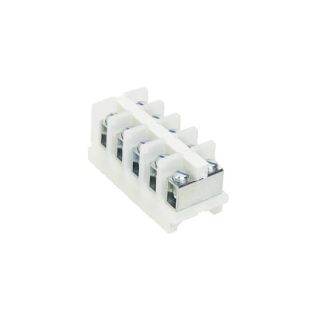

830 IDE

Name: 830 IDE
Brand: Ideal Industries
SKU: 830 IDE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Ideal Industries

Manufacturer part number:

830

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

BUCHANAN

Type

Heavy Duty Intermediate

Description

BUCHANAN Terminal Block End Section, Heavy Duty Intermediate, Specifications: 155 A, 600 VAC, 3/4 in Spacing, 1/0 AWG, 105 deg C, End Section Mount, Nylon 6/6

Standards

UL Listed | CSA Certified | RoHS Compliant

Features

The 800 series line of 600 VAC blocks is conservatively rated up to 150 A for a single 1/0 AWG copper wire
Exceptionally compact block accepts single wire or combinations up to 1/0 AWG
92 circuits per 6 ft length
Tubular screw contact style accepts AWG sizes from 12 to 1/0, solid or stranded
Two-way mounting base fits standard channel or mounts directly to flat surfaces
Only one end section needed per block assembly
Readily identifiable circuits write directly on painted marking surface or use removable vinyl marking strip
7/16-20 slotted headless screws
Snap-fit with heavy duty nylon and phenolic and fuse blocks
Resistant aromatic hydrocarbons, strong alkalis

Specifications

Country of Origin:	MX
Material:	Nylon 6/6
Specifications:	155 A, 600 VAC, 3/4 in Spacing, 1/0 AWG, 105 deg C, End Section Mount
