8300-HIJ LEV

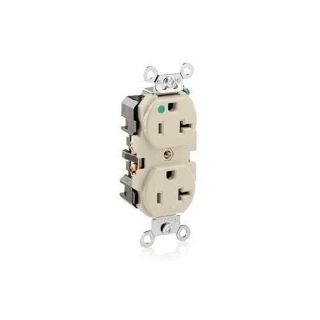

Picture of 8300-HIJ LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton
Manufacturer part number:
8300-HIJ
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Type

1-Phase Duplex Heavy Duty

Alternate Supplier #

Grainger - 25LT06

Description

All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high abuse tolerance, including health care facilities, manufacturing plants and schools.
Leviton® Straight Blade Receptacle, 1-Phase Duplex Heavy Duty, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Ivory, 46 in H x 1.51 in W x 1.18 in D Dimensions

Standards

NEMA WD1/WD6 | ANSI C73 | NOM 057 | CSA C22.2 No. 42 File No. 152105 | UL Federal Specification W-C-596 File No. E13399 | UL 498HG File No. E13399 | UL94 V-2 Flammability Rating

Specifications

Amperage Rating:20 A
Color:Ivory
Country of Origin:MX
Dimensions:46 in H x 1.51 in W x 1.18 in D
Grade:Commercial
Horsepower:1 hp
Material:Thermoplastic
NEMA Rating:NEMA 5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Back/Side Wire
Voltage Rating:125 VAC
