8300GYLTR HWD

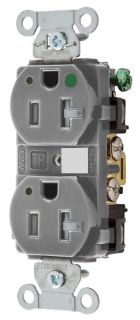

Picture of 8300GYLTR HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
8300GYLTR
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Duplex Heavy Duty Tamper-Resistant

Description

The Hubbell® tamper resistant mechanism eliminates the frustration and difficulty experienced using TR receptacles with plugs that have sharp or bent blades. Hubbell® TR receptacles work so well there is virtually no perceptible difference in the feel between the TR receptacles and our conventional non-TR receptacles. Trust Hubbell® to deliver tamper resistant protection that feels like it's not even there.
Wiring Device-Kellems Hubbell-PRO Straight Blade Receptacle, Duplex Heavy Duty Tamper-Resistant, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, -40 to 75 deg C, Back/Side Wire Terminal, Nylon, Gray, 3.28 in H x 1.57 in W x 1.15 in D Dimensions

Application

Schools and Universities, Hotels and Convention Centers, Assisted Living Facilities, Transportation Centers and Military Barracks

Standards

ARRA Compliant | Buy American Act Compliant | CSA Certified | Federal Specification WC596 | NEMA WD6 | UL 498

Features

  • Circuit ID marking area on hospital grade
  • Steel mounting strap, self-grounding
  • Exclusive nickel plated bypass contact design increases contact pressure, lowering the operating temperature
  • Four point grounding system provides redundant grounding for low resistance ground continuity in high abuse areas
  • Impact resistant deep face design prevents breakage
  • Triple wipe power contacts
  • Best in class TR mechanism
  • Tested to UL hospital grade test standards for impact resistance and abrupt plug pull out

Specifications

Amperage Rating:20 A
Color:Gray
Country of Origin:US
Dimensions:3.28 in H x 1.57 in W x 1.15 in D
Grade:Hospital
Horsepower:1 hp
Material:Nylon
NEMA Rating:NEMA 5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Back/Side Wire
Voltage Rating:125 VAC
