8300REDTR HWD

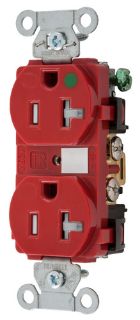

Picture of 8300REDTR HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
8300REDTR
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Decorator Duplex Heavy Duty Standard Tamper-Resistant Traditional

Description

Wiring Device-Kellems Hubbell-Pro™ Straight Blade Receptacle, Decorator Duplex Heavy Duty Standard Tamper-Resistant Traditional, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, -40 to 75 deg C, Screw Terminal, Composite, Red, 3.28 in L x 1.57 in W x 1.15 in H Dimensions

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | CSA C22.2 No. 42 | UL 498 E2186 | Federal Spec WC596 | UL 94-V-2 | NEC Certified | NEMA WD6

Features

  • High impact resistant face with circuit ID marking area
  • Triple wipe contacts
  • Steel mounting strap

Specifications

Amperage Rating:20 A
Color:Red
Country of Origin:US
Dimensions:3.28 in L x 1.57 in W x 1.15 in H
Grade:Hospital
Horsepower:1 hp
Material:Composite
NEMA Rating:NEMA 5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
