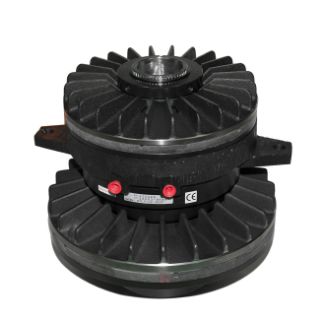

832900 NEX

The HWCB is a clutch and a brake combined into a single unit. Static torque capacity up to 2800 in-lb at 80 psi (brake), 2600 in-lb at 80 psi (clutch). Maximum operating speed up to 1800 rpm. Thermal horsepower ratings of 1-1/4 hp (clutch), 2.23 hp (brake). These clutch-brakes must be mounted on the driven shaft. Brake housing must not be mounted rigidly. 3 to 5 V or 3 to B groove sheave. Pilot mount bore sizes of 1.688 in and 1-7/8 in.

Nexen® Air Champ® Combination Shaft Mounted Clutch/Brake, Driven Air Actuated Open, 2800 ft-lb Brake/2600 in-lb Clutch Torque, 1.013 cu-in New/5.533 cu-in Worn Out Brake, 1.268 cu-in New/5.269 cu-in Worn Out Clutch Air Volume, 1800 rpm Maximum, 80 psi Maximum, 1-7/8 in Bore, 32 to 150 deg F, Black Oxide, 10.06 in Dia x 10.38 in L Dimensions
