Name: 835516 NEX
Brand: Nexen
SKU: 835516 NEX
Availability: OutOfStock

835516 NEX

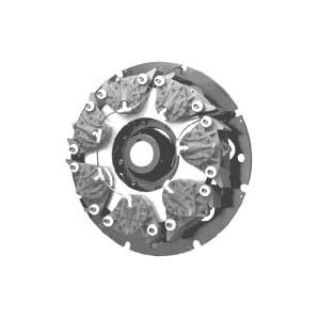

Actual Product May Vary From Image

Product Details

Manufacturer:

Nexen

Manufacturer part number:

835516

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Nexen®

Type

Air Actuated

Description

Nexen® Multi-Caliper Tension Control Brake, Air Actuated, Series: XTB18, 600 N-m Static/7947 in-lb Low Coefficent/14265 in-lb Standard Coefficent Dynamic Torque, 1900 rpm Maximum, 85 psi Maximum, 100 mm Bore, 32 to 150 deg F, Black Oxide, 24.5 in OD x 8.26 in L Dimensions

Application

For tensioning

Standards

CE Certified and RoHS Compliant

Features

XTB 18 heavy-duty air cooled tension control brakes with up to 31.6 hp thermal capacity
High thermal capacity, wide torque range, and quick change facings

Specifications

Bore Diameter:	100 mm
Country of Origin:	US
Dimensions:	24.5 in OD x 8.26 in L
Finish:	Black Oxide
Maximum Pressure:	85 psi
Maximum Speed:	1900 rpm
Series:	XTB18
Temperature Rating:	32 to 150 deg F
Torque Rating:	600 N-m Static/7947 in-lb Low Coefficent/14265 in-lb Standard Coefficent Dynamic
