Name: 835667 NEX
Brand: Nexen
SKU: 835667 NEX
Availability: OutOfStock

835667 NEX

Actual Product May Vary From Image

Product Details

Manufacturer:

Nexen

Manufacturer part number:

835667

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Nexen®

Type

Air Actuated

Description

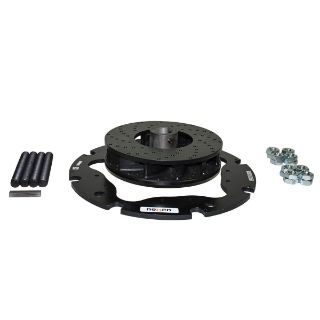

Nexen® Multi-Caliper Tension Control Brake, Air Actuated, Series: XTBA14, 600 N-m Static/4809 in-lb Low Coefficent/9086 in-lb Standard Coefficent Dynamic Torque, 2400 rpm Maximum, 85 psi Maximum, 2-1/2 in Bore, 32 to 150 deg F, Black Oxide, 20.75 in OD x 9.06 in L Dimensions

Application

For tensioning

Standards

CE Certified and RoHS Compliant

Features

XTBA 14 heavy-duty cross drilled air cooled tension control brakes with up to 27.1 hp thermal capacity
High thermal capacity, wide torque range, and quick change facings

Specifications

Bore Diameter:	2-1/2 in
Country of Origin:	US
Dimensions:	20.75 in OD x 9.06 in L
Finish:	Black Oxide
Maximum Pressure:	85 psi
Maximum Speed:	2400 rpm
Series:	XTBA14
Temperature Rating:	32 to 150 deg F
Torque Rating:	600 N-m Static/4809 in-lb Low Coefficent/9086 in-lb Standard Coefficent Dynamic
