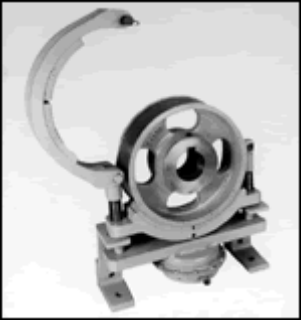

845102 NEX

These drum brakes are ideal for high torque slow speed control applications. Hinged design for use with removable brake drums. 4, 8 and 12 in drum sizes available. Thermal horsepower rating up to 3 hp static torque capacity up to 3750 in-lb at 80 psi. Each model allows you to customize your drum bore. Shaft mounted design. Air actuated for accurate, economical operation. Long-wearing friction linings. Order brake and drum separately.

Nexen® Air Champ® Drum Brake, Air Actuated Hinge Top Open, 1200 in-lb Static Torque, 6.283 cu-in New/12.566 cu-in Worn Out Air Volume, 80 psi Maximum, 32 to 150 deg F, Nickel Plated, 6 in L x 8.76 in H Dimensions
