84H200 SF MSG

Name: 84H200 SF MSG
Brand: Martin Sprocket & Gear
SKU: 84H200 SF MSG
Price: 465.45 USD
Availability: OutOfStock

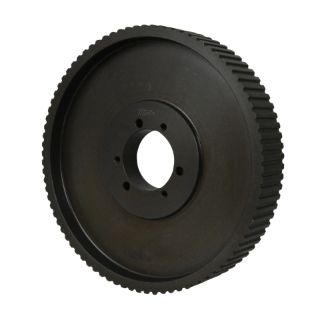

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

84H200 SF

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$465.45 / EA

Description

Brand Name

Martin

Type

Arms/Spoke Type H-3

Description

Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD Bushed styles depending on size and pitch. Synchronous sprockets are non slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.

Martin Stock Timing Pulley, Arms/Spoke Type H-3, QD® Bushed Bore, 0.5 to 2.938 in Bore Dia, 13.3185 in Outside Dia, 13.369 in, 84 Grooves, 1/2 in Pitch, 2.34375 in Face Width, 9/64 in Hub Projection, SF Bushing, 2-5/16 in Overall Length, For Use With: 2 in W Type H Belt, Cast Iron

Application

Wood Products, Environmental, Recycling, Food and Beverage, Conveying, Air Cooled Heat Exchanger and Trapezoidal Tooth Belts

Features

Trapezoidal tooth form
Exhibit many of the best features of chain drives and belt drives
Non-slip toothed drive with no metal to metal contact
No lubrication needed
Precise machining and processes ensure consistent finish and high quality

Specifications

Bore Diameter:	0.5 to 2.938 in
Bore Type:	QD® Bushed
Bushing Type:	SF
Country of Origin:	US
Face Width:	2.34375 in
Hub Projection:	9/64 in
Material:	Cast Iron
Number of Grooves:	84
Outside Diameter:	13.3185 in
Overall Length:	2-5/16 in
Pitch:	1/2 in
Pitch Diameter:	13.369 in
Suitable For Use With:	2 in W Type H Belt
