85002 WOO

Name: 85002 WOO
Brand: Molex (Woodhead)
SKU: 85002 WOO
Availability: OutOfStock

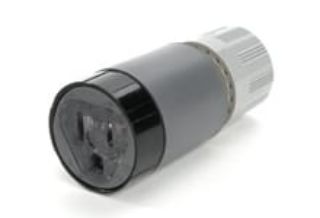

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex (Woodhead)

Manufacturer part number:

85002

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Woodhead®

Type

Lighted

Description

Woodhead Super-Safeway products are heavy-duty industrial-wiring devices designed for abusive conditions and dependable performance for applications that demand the unmatched durability that rubber exclusively delivers. These rubberized industrial devices are the only wiring devices made of NEo-TEX® Paracril OZO rubber, a rubber construction that yields ultimate performance within a wide temperature range, around many oils and chemicals and abrasive conditions.

Woodhead® Super-Safeway™ Female Connector, Lighted, Series: 130141, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA 5-15, Hospital/Industrial Grade, 0.335 to 0.64 in Cord Dia, -40 to 75 deg C, Screw/Wire Terminal, Rubber, Gray

Application

Aircraft Construction/Airports, Construction Site, Facility Maintenance, Petrochemical, Pulp and Paper Manufacturing Applications

Standards

UL E10176 | CSA LR6837

Features

NEo-TEX® paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway™ offering
Rugged nylon bodies within the Safeway® offering provide exceptional durability and performance
Color-coded 1/4 in terminal screws pre-set in open position, ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
Two-piece cord clamp strain relief includes tri-drive screws to firmly secure the cord
Nickel-plated brass plug blades and connector contacts
NEo-TEX® paracril OZO rubber Super-Safeway™ outer housing
Nylon safeway outer housing
Stainless steel face screws
Nylon face insert
Brass wire saddle clamp
Zinc-plated steel cord clamp screws
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Single receptacle

Specifications

Amperage Rating:	15 A
Color:	Gray
Cord Diameter:	0.335 to 0.64 in
Country of Origin:	MX
Grade:	Hospital/Industrial
Material:	Rubber
NEMA Rating:	NEMA 5-15
Number of Poles:	2
Number of Wires:	3
Series:	130141
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw/Wire
Voltage Rating:	125 VAC
