850794.00 LEE

Name: 850794.00 LEE
Brand: Leeson Electric
SKU: 850794.00 LEE
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leeson Electric

Manufacturer part number:

850794.00

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

LEESON®

Type

Continuous-Duty

Description

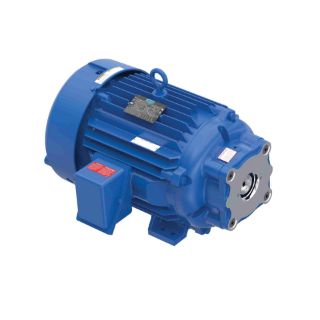

LEESON® AC Motor, Continuous-Duty, Hydraulic Pump Motors Application, 30 hp, 230/460 VAC, 67/33.5 A, 60 Hz Frequency, 3 ph ph, 3555 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 286TZ Frame, 1.88 in Dia Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 44.5 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 10:1 Variable Torque Speed, 25.35 in L x 20.74 in W x 18.02 in H Dimensions

Application

Commercial and Industrial Applications

Standards

CE/CSA Certified | UL Listed

Features

IRIS® inverter duty insulation system

Specifications

Amperage Rating:	67/33.5 A
Application Type:	Hydraulic Pump Motors
Bearing Type:	Ball
Country of Origin:	US
Dimensions:	25.35 in L x 20.74 in W x 18.02 in H
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	286TZ
Frequency Rating:	60 Hz
Horsepower:	30 hp
Insulation Class:	Class F
Material:	Cast Iron
Mounting Type:	Rigid Base
Phase:	3 ph
Rotation:	Reversible
Service Factor:	1.15
Shaft Size:	1.88 in Dia
Speed:	3555 rpm
Temperature Rating:	40 deg C
Torque Rating:	44.5 ft-lb
Variable Torque Speed Range:	10:1
Voltage Rating:	230/460 VAC
