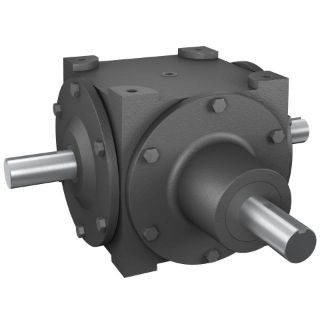

88 1/1.5 A,B SP HUB

Name: 88 1/1.5 A,B SP HUB
Brand: Hub City
SKU: 88 1/1.5 A,B SP HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City , Hub City

Manufacturer part number:

0220-04051

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Spiral Single Reduction Style A B

Description

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

Hub City® Bevel Gear Reducer, Right Angle Spiral Single Reduction Style A B, Series: 88 Series, 1:1.5 Gear Ratio, 68 hp, Shaft Input, Shaft Output, 1-3/8 in Dia x 3-1/16 in L Input, 1-3/8 in Dia x 3 in L Output, 1725 rpm Output Maximum Speed, 1150 rpm Input Maximum Speed, 2480 in-lb, 10-7/8 in Centre Distance, 5/16 x 5/32 in Input Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Four-Bolt Surface Mount, Cast Iron, 15-13/16 in W x 14-23/32 in D x 8-3/16 in H

Application

Agriculture, Aerospace, Construction, Food Processing, Medical, Material Handling, Packaging, Recreation and Transportation

Standards

AGMA Class 1

Features

Rugged cast iron housing
Universal mounting dimensions
Alloy shafting
Heavy duty industrial seals

Specifications

Centre Distance:	10-7/8 in
Country of Origin:	US
Dimensions:	15-13/16 in W x 14-23/32 in D x 8-3/16 in H
Efficiency:	97.5 %
Gear Ratio:	1:1.5
Horsepower:	68 hp
Input Maximum Speed:	1150 rpm
Input Size:	1-3/8 in Dia x 3-1/16 in L
Input Type:	Shaft
Keyway Size:	5/16 x 5/32 in Input
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Mounting Type:	Four-Bolt Surface
Output Maximum Speed:	1725 rpm
Output Size:	1-3/8 in Dia x 3 in L
Output Type:	Shaft
Series:	88 Series
Torque Rating:	2480 in-lb
