884030A09M010 WOO

Name: 884030A09M010 WOO
Brand: Molex (Woodhead)
SKU: 884030A09M010 WOO
Price: 47.87 USD
Availability: OutOfStock

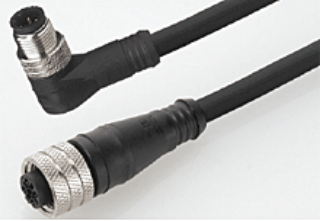

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex (Woodhead)

Manufacturer part number:

884030A09M010

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

$47.87 / EA

Description

Brand Name

Brad®

Type

Double End

Description

Brad® Micro-Change® Cordset, Double Ended, Series: 120066, Straight Female x Straight Male Connector, M12 Connector, PVC, 3.28 ft Cable Length, PVC Cable, 4 Pole, Single Keyway, 250 VAC/VDC, 4 A

Application

Construction and Mining Equipment, Machine Lighting, Ground Vehicle Networks, Automated Assembly Equipment, Conveyor Systems and Material Handling

Standards

CSA LR6837 | UL AWM 2661 | UL E152210 | RoHS Compliant

Features

M12 design meets IEC specifications
Ideal for class 2 power and network circuit applications
Provides a longer-lasting, high performance electrical contact
Prevents the coupler from loosening even under extreme vibration
Water-tight panel-mount design
22 AWG yellow cable
Copper alloy contact, nickel plated brass coupling nut, fluoro-elastomer O-ring, Gold over nickel plating mating
0.21 in cable diameter
-20 to 105 deg C operating temperature

Specifications

Amperage Rating:	4 A
Cable Length:	1 m
Cable Material:	PVC
Connector Material:	PVC
Connector Size:	M12
Connector Type:	Straight Female x Straight Male
Country of Origin:	MX
IEC Rating:	IEC 60664
Keyway:	Single
NEMA Rating:	NEMA IP67
Number of Poles:	4
Series:	120066
Voltage Rating:	250 VAC/VDC
Wire Pin Colors:	Black/Blue/Brown/White
