884030C02M1008 WOO

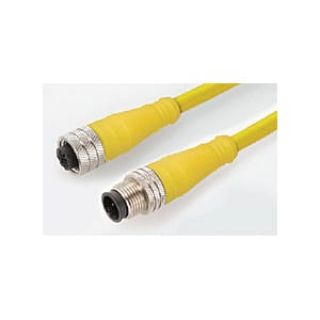

Picture of 884030C02M1008 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex (Woodhead)
Manufacturer part number:
120066-1678
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$185.90 / EA

Description

Brand Name

Woodhead®

Type

Double End

Description

Woodhead® Micro-Change® Cordset, Double End, Series: 120066, Straight Male x Straight Female Connector, M12 Connector, TPE Connector, SJOOW Cable, 32.8 ft Cable Length, CPE Cable, 4 Pole, Single Keyway, 250 VAC/VDC, 4 A, Black/Blue/Brown/White Wire Pin, NEMA 6P/IP68 NEMA Rating

Standards

CSA LR6837 | RoHS Compliant | UL E152210

Features

  • 18 AWG yellow cable
  • Nylon 6/6 connector face, TPE molded body and nitrile rubber o-ring
  • -20 to 105 deg C temperature rating

Specifications

Amperage Rating:4 A
Cable Length:32.8 ft
Cable Material:CPE
Cable Type:SJOOW
Connector Material:TPE
Connector Size:M12
Connector Type:Straight Male x Straight Female
Keyway:Single
NEMA Rating:NEMA 6P/IP68
Number of Poles:4
Series:120066
Voltage Rating:250 VAC/VDC
Wire Pin Colors:Black/Blue/Brown/White
