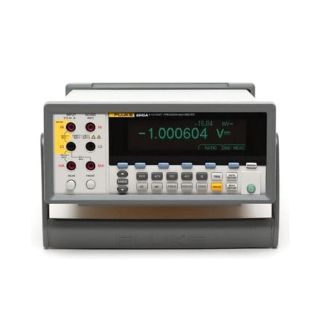

8846A 120V FLU

Product Details

Manufacturer:
Manufacturer part number:
8846A120V
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 6-8 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Fluke®

Type

Digital Precision Multimeter

Description

Digital Precision Multimeter, Model: 8846A x, Voltage Rating: DC: 100 MILV - 1000 V, AC: 100 MILV - 1000 V, Amperage Rating: DC: 200 MICAMP - 10 AMP, AC: 100 MILAMP - 10 AMP, Frequency Rating: 3 HZ - 1 MHZ, Resistance: 10 OHM - 1 GOHM, Capacitance: 1 NFD - 0.1 FD, Accuracy: 0.0024 Plus 0.0005 For DC Voltage, 0.06 Plus 0.03 For AC Voltage, 0.010 Plus 0.001 For Resistance, 0.050 Plus 0.005 For DC Current, 0.10 Plus 0.04 For AC Current, 0.01 PCT Frequency, 0.06 DEG Temperature, Display: VFD Dot Matrix, Dual, Temperature Rating: Operating: 0 - 55 DEG C, Storage: -40 To 70 DEG C, Diode Test: Test Current: 100 MICAMP or 1 MILAMP, Response Time: 300 Samples/S With Audible Tone, Dimensions: 3.46 IN Height X 8.56 IN Width X 11.7 IN Depth, Resolution: 6.5 Digits, Continuity: Threshold: Selectable Between 1 OHM And 1000 OHM, Test Current: 1 MILAMP, Response Time: 300 Samples/S With Audible Tone, Interface: RS 232, IEE-488.2, Ethernet, USB Port, Math Functions: Zero, dBm, dB, MX+B, Offset, DCV Ratio, TrendPlot, Histogram, Statistics And Limit Test, UL 61010-1A1, CAN/CSA-C22.2 No. 61010.1, CAT I 1000V/CAT II 600V, Designed To Comply With IEC 61010-1:2000-1
Fluke® Digital Multimeter, Digital Precision Multimeter, 1000 V, 10 A, 3 Hz Frequency, 1 NFD to .1 FD Capacitance, 10 Ohm Resistance, 0.0024 % Accuracy

Standards

UL 61010-1A1 | CAN/CSA-C22.2 No. 61010.1/CAT I 1000V/CAT II 600V | Designed To Comply With IEC 61010-1:2000-1 | RoHS Compliant

Features

  • Dimensions: 3.46 in H x 8.56 in W x 11.7 in D
  • Temperature Rating: 0 to 55 Degrees C

Specifications

Accuracy:0.0024 %
Amperage Rating:10 A
Capacitance:1 NFD to .1 FD
Frequency Rating:3 Hz
Resistance:10 Ohm
Voltage Rating:1000 V
