8A5006-32 WOO

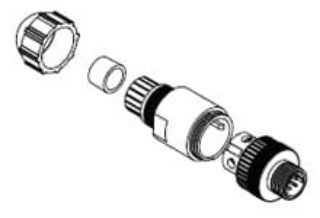

Picture of 8A5006-32 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex (Woodhead)
Manufacturer part number:
8A5006-32
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$33.71 / EA

Description

Brand Name

Brad®

Type

Straight Male External Thread

Description

Micro-Change® (M12) connectors are designed to withstand harsh industrial and weather environments with superior quality that assures very reliable connections for control elements in automated equipment. These high quality connectors allow fast and simple replacement of sensors, encoders, switches and other input and output devices in industrial machinery.
Brad® Micro-Change® Field Attachable Connector, Straight Male External Thread, Series: 120071, 30 VAC/36 VDC, 4 A, 18 AWG Cable, Nitrile O-Ring, Polyamide Insert, Polyamide Overmold, Brass Coupling Nut, M12 Thread, Environmental Conditions: -25 to 90 deg C Temperature, IP67 deg of Protection

Standards

cCSAus Certified | CSA File No. LR6837

Features

  • Internal thread coupling
  • 90 deg (female) orientation, single keyway
  • 5-poles
  • -25 to 90 deg C operating temperature
  • Black nitrile grommet, silver plated copper alloy contact
  • Black polyamide cord grip body, black nitrile O-ring
  • 18 AWG wire

Specifications

Amperage Rating:4 A
Cable Size:18 AWG
Country of Origin:DE
Coupling Nut Material:Brass
Environmental Conditions:-25 to 90 deg C Temperature, IP67 deg of Protection
Insert Material:Polyamide
O-Ring Material:Nitrile
Overmold Material:Polyamide
Series:120071
Thread Size:M12
Voltage Rating:30 VAC/36 VDC
