Actual Product May Vary From Image

915L6 GAT

Name: 915L6 GAT
Brand: Gates
SKU: 915L6 GAT
Price: 116.49 USD
Availability: OutOfStock

Micro-V™

Manufacturer: Gates

Manufacturer part number: 915L6

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$116.49

Qty:

Product Details

Brand Name

Gates

Alternate Supplier #

917309106

Description

Gates Micro-V® belts ensure outstanding performance on any industrial multi-ribbed drive. They cover a multitude of industrial applications and are suitable for industrial drives in washing machines, textile machines, vacuum cleaners, lawn mowers, machine tools, medical equipment and many more. Exclusive truncated (shortened) profile gives Gates Micro-V belts increased flexibility, reduced heat buildup and allows performance at higher speeds on smaller diameter sheaves. The full line of Micro-V belt products includes slabs in several widths as well as single belts in J, K, L and M sections in order to perfectly match customer requirements.

Features

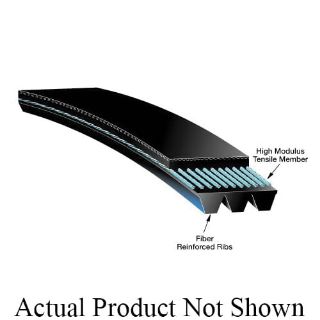

Fiber reinforced ribs for excellent wear resistance. High modulus, low stretch tensile member for added strength and dependability. Smooth running for minimal vibration at high speeds. Well suited for applications such as appliances, outdoor power equipment, roller conveyors, machine tools, medical equipment and exercise equipment. Meets ARPM/RMA IP-3-2 oil and heat resistant standards.

Specifications

Angle:	41
Belt Back Side:	Smooth
Belt Inside:	Ribbed
Belt/Slab:	Belt
Color:	Black
Construcao:	Multi Ribbed Belt
Cord Material:	Polyester
Country of Origin:	MX
Effective Length (in):	91.5
Effective Length (mm):	2324
GC Base Product:	Industrial Micro-V® L-Section Belts
Harmonized Tariff Code:	4010.33.3000
Material:	Polychloroprene (Neoprene)
Max Temp (°C):	+82
Max Temp (F):	+180
Min Temp (°C):	-34
Min Temp (F):	-30
Number of Ribs/Strands:	6
OC (in):	92.12
OC (mm):	2340
Proposition 65:	NO
Secao:	PL
Sided:	Single Sided
Static Conductive:	No
Thickness (in):	0.26
Thickness (mm):	7
Top Width (in):	1.11
Top Width (mm):	28
Unitset (V80):	No
