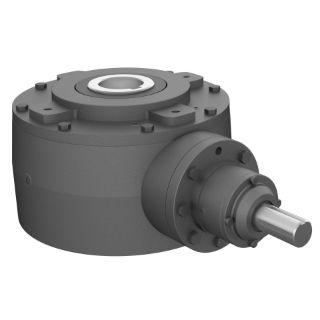

920 3.78/1 STD SP 1.938 HUB

Name: 920 3.78/1 STD SP 1.938 HUB
Brand: Hub City
SKU: 920 3.78/1 STD SP 1.938 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City , Hub City

Manufacturer part number:

0220-04422

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Spiral Single Reduction Style STD

Description

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

Hub City® Bevel Gear Reducer, Right Angle Spiral Single Reduction Style STD, Series: 920, 3.78:1 Gear Ratio, 71-1/2 hp, Shaft Input, Hollow Bore Output, 1-1/4 in Dia x 2-15/32 in L Input, 1.938 in Dia Output, 463 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 9731 in-lb, 13-5/16 in Centre Distance, 1/4 x 1/8 in Input, 1/2 x 1/4 in Output Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Surface Mount, Cast Iron, 19-11/32 in W x 12-1/16 in D x 8-1/4 in H

Application

Agriculture, Aerospace, Construction, Food Processing, Medical, Material Handling, Packaging, Recreation and Transportation

Standards

AGMA Class 1

Features

Rugged cast iron housing
Shaft mounted for direct mounting on drive shafts
Hub City® "counter flow" bearing lubrication system
Tapered roller bearings
Heavy duty industrial seals
Differential type spiral bevel (SP) gearing

Specifications

Centre Distance:	13-5/16 in
Dimensions:	19-11/32 in W x 12-1/16 in D x 8-1/4 in H
Efficiency:	97.5 %
Gear Ratio:	3.78:1
Horsepower:	71-1/2 hp
Input Maximum Speed:	1750 rpm
Input Size:	1-1/4 in Dia x 2-15/32 in L
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Input, 1/2 x 1/4 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Mounting Type:	Surface
Output Maximum Speed:	463 rpm
Output Size:	1.938 in Dia
Output Type:	Hollow Bore
Series:	920
Torque Rating:	9731 in-lb
