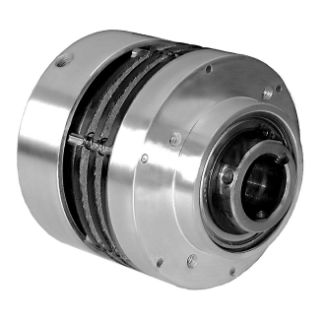

923589 NEX

Air engaged, straight bore, clutch brakes offer high torque in a small package. The LSCB line is ideal for soft starts on accumulating, chain driven live roller or inline conveyor applications. With a maximum clutch torque rating of 2800 in-lb and a bore range from 1/2 to 1-1/2 in, these products outperform the competition at a lower cost. The LSCB comes standard with a pilot designed for easy sprocket mounting or can be configured for a variety of mounting applications.

Nexen® Air Champ® Combination Shaft Mounted Clutch/Brake, Air Actuated/Spring Engaged Driven Open, 81 ft-lb Brake/1388 in-lb Clutch Torque, 2.399 cu-in New/4.516 cu-in Worn Out Clutch Air Volume, 250 rpm Maximum, 80 psi Maximum, 1 in Bore, 32 to 150 deg F, Machined Aluminum, 4.58 in Dia x 5.59 in L Dimensions
