92463 WOO

Name: 92463 WOO
Brand: Molex (Woodhead)
SKU: 92463 WOO
Price: 2,313.06 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex (Woodhead)

Manufacturer part number:

92463

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$2,313.06 / EA

Description

Brand Name

Woodhead®

Description

Industrial-duty cable reels such as Pow-R-Mite® and Pow-R-Matic® are spring-powered reels made of precision electrical and mechanical components to accommodate upto 48.8m (160') of 16/3 AWG cable or upto 15.3m (50') of 6/3 AWG cable. Cable reels have NEMA-3 and NEMA-4 ratings for indoor and outdoor use to protect against water and corrosion for weather and dust resistance. Precision collector rings can be specified for upto 36 conductors.

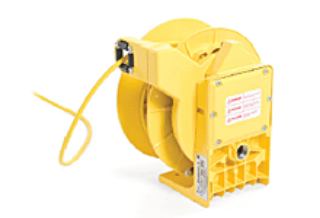

Woodhead® POW-R-MITE® Cable Reel, Series: 130083, 600 VAC, 14 A, 30 ft Cord Length, 12 AWG Conductor, Rigid Base Reel Mounting, Industrial Grade, Aluminum, Yellow, 10.82 in W x 13.5 in D x 14.5 in H Dimensions

Application

For vertical lift, drag, recovery and horizontal stretch with 10% sag

Standards

CSA Certified | UL Listed

Features

NEMA 4 enclosure provides protection to water or dust, indoor and out
Cable guide is adjustable every 5 deg over a 270 deg arc allowing for the exact configuration to suit the application
Design prohibits annoying lock-out when cable is fully extended
Containerized main spring allow for safe, simple handling and replacement
Reels are constructed with spring tension to lift or stretch cable with no more than 10% sag
1 in NPT primary cable entry
Cast aluminum with yellow powder coat finish construction
Working end, flying leads and ball stop not included
Easily disengaged as needed ratchet lock
Easily adjusted tension
Large, easy access spring junction box
12/6 SOW cable

Specifications

Amperage Rating:	14 A
Color:	Yellow
Conductor Size:	12 AWG
Cord Length:	30 ft
Country of Origin:	MX
Dimensions:	10.82 in W x 13.5 in D x 14.5 in H
Grade:	Industrial
Material:	Aluminum
Reel Mounting Type:	Rigid Base
Series:	130083
Voltage Rating:	600 VAC
