Home / 928000 NEX

928000 NEX

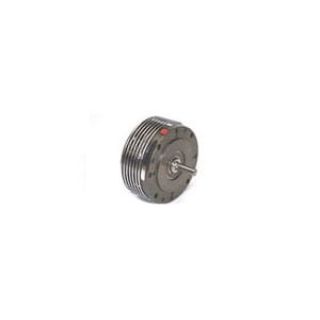

Picture of 928000 NEX
Actual Product May Vary From Image

Product Details

Manufacturer:
Nexen
Manufacturer part number:
928000
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$872.00 / EA

Description

Brand Name

Nexen®

Type

Open Style

Description

Nexen® Flange Mounted Friction Brake, Open Style, Series: MBU-875, 540 in-lb, 0.55 cu-in New/1.392 cu-in Worn Out Air Volume, 1800 rpm Maximum, 80 psi Maximum, 7/8 in Bore Dia, 32 to 150 deg F, Black Oxide, 6.5 in OD x 5.06 in L

Application

For stopping, holding and tensioning

Standards

CE Certified and RoHS Compliant

Features

Air engaged, NEMA C-face mounted, modular series of clutches brakes or clutch/brakes

Specifications

Air Volume:0.55 cu-in New/1.392 cu-in Worn Out
Bore Diameter:7/8 in
Dimensions:6.5 in OD x 5.06 in L
Finish:Black Oxide
Maximum Pressure:80 psi
Maximum Speed:1800 rpm
Series:MBU-875
Temperature Rating:32 to 150 deg F
Torque Rating:540 in-lb
