928500 NEX

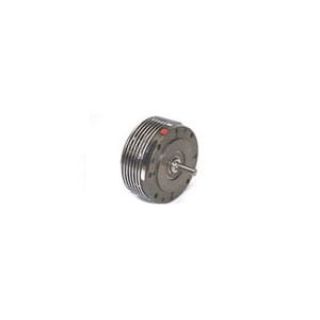

Nexen® 928500 MBU-625 Open Style Flange Mounted Friction Brake, 540 in-lb Torque, 0.55 cu-in New/1.392 cu-in Worn Out, 1800 rpm Maximum Speed, 80 psi
Manufacturer: Nexen
Manufacturer part number: 928500
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$801.00

Product Details

Brand Name

Nexen®

Type

Open Style

Description

Nexen® Flange Mounted Friction Brake, Open Style, Series: MBU-625, 540 in-lb, 0.55 cu-in New/1.392 cu-in Worn Out Air Volume, 1800 rpm Maximum, 80 psi Maximum, 5/8 in Bore Dia, 32 to 150 deg F, Black Oxide, 6.5 in OD x 5 in L

Application

For stopping, holding and tensioning

Standards

CE Certified and RoHS Compliant

Features

Air engaged, NEMA C-face mounted, modular series of clutches brakes or clutch/brakes

Specifications

Air Volume:0.55 cu-in New/1.392 cu-in Worn Out
Bore Diameter:5/8 in
Dimensions:6.5 in OD x 5 in L
Finish:Black Oxide
Maximum Pressure:80 psi
Maximum Speed:1800 rpm
Series:MBU-625
Temperature Rating:32 to 150 deg F
Torque Rating:540 in-lb
