931 ARL

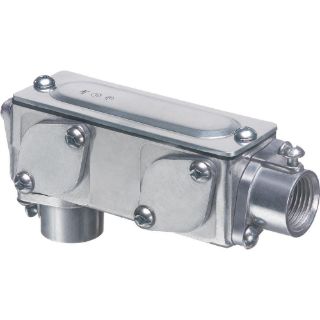

Arlington AnyBODY™ 931 5-in-1 Conduit Body With Cover, Gasket, LB Body, 3/4 in Hub, 7.8 cu-in Capacity, Copper Free Die Cast Aluminum
Manufacturer: Arlington
Manufacturer part number: 931
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$21.56

Product Details

Brand Name

Arlington

Type

5-in-1

Alternate Supplier #

Grainger - 4JWH1

Description

Arlington AnyBODY™ Conduit Body, 5-in-1, LB Body, 3/4 in Hub, 7.8 cu-in Capacity, Threaded x Set Screw Connection, Copper Free Die Cast Aluminum, Silver, 5.64 in L x 2.77 in W x 2.02 in H Dimensions

Application

For IMC, rigid and set screw EMT cable

Standards

PROP65: This product can expose you to chemicals including: lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov

Features

  • Convenient and easy to use
  • Saves the time, space and cost of stocking five different conduit bodies
  • Volume and wire fill marked inside bodies
  • Recessed O-rings under covers and flanges
  • 1/2 to 2 in sizes are combination EMT rigid they are threaded for rigid, but also have a set screw for use with EMT
  • Ships as an LB, but converts to a T, LL, LR or C
  • 10/pack

Includes

Threaded Flange

Specifications

Body Type:LB
Capacity:7.8 cu-in
Color:Silver
Connection Type:Threaded x Set Screw
Country of Origin:CN
Dimensions:5.64 in L x 2.77 in W x 2.02 in H
Hub Size:3/4 in
Material:Copper Free Die Cast Aluminum
