Actual Product May Vary From Image

933500 NEX

Name: 933500 NEX
Brand: Nexen
SKU: 933500 NEX
Price: 1,875.00 USD
Availability: OutOfStock

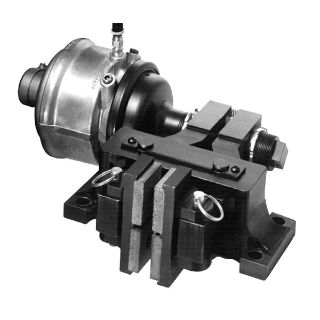

Nexen® 933500 BD Series Spring Actuated/Air Released High Coefficient Caliper Brake, 19000 in-lb Static Torque, 41.6 cu-in New, 100 psi

Manufacturer: Nexen

Manufacturer part number: 933500

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1,875.00

Qty:

Product Details

Brand Name

Nexen®

Type

Spring Actuated/Air Released High Coefficient

Description

Nexen® Caliper Brake, Spring Actuated/Air Released High Coefficient, Series: BD Series, 19000 in-lb Static, 41.6 cu-in New Air Volume, 100 psi Maximum, 32 to 150 deg F, Black Oxide, 15.64 in L

Application

For stopping, holding and tensioning

Standards

CE Certified and RoHS Compliant

Specifications

Air Volume:	41.6 cu-in New
Country of Origin:	US
Dimensions:	15.64 in L
Finish:	Black Oxide
Maximum Pressure:	100 psi
Series:	BD Series
Temperature Rating:	32 to 150 deg F
Torque Rating:	19000 in-lb Static
