935 ARL

Name: 935 ARL
Brand: Arlington
SKU: 935 ARL
Price: 101.45 USD
Availability: OutOfStock

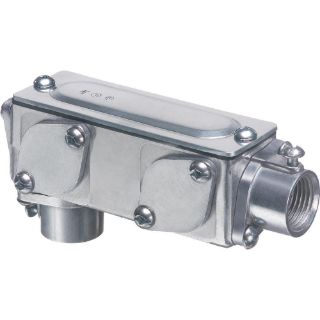

Arlington AnyBODY™ 935 5-in-1 Conduit Body With Cover, Gasket, LB Body, 2 in Hub, 69-1/2 cu-in Capacity, Copper Free Die Cast Aluminum

Manufacturer: Arlington

Manufacturer part number: 935

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$101.45

Qty:

Product Details

Brand Name

Arlington

Type

5-in-1

Alternate Supplier #

Grainger - 4JWH5

Description

Arlington AnyBODY™ Conduit Body, 5-in-1, LB Body, 2 in Hub, 69-1/2 cu-in Capacity, Threaded x Set Screw Connection, Copper Free Die Cast Aluminum, Silver, 10.73 in L x 4.67 in W x 3.5 in H Dimensions

Application

For IMC, rigid and set screw EMT cable

Standards

PROP65: This product can expose you to chemicals including: lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov

Features

Convenient and easy to use
Saves the time, space and cost of stocking five different conduit bodies
Volume and wire fill marked inside bodies
Recessed O-rings under covers and flanges
1/2 to 2 in sizes are combination EMT rigid they are threaded for rigid, but also have a set screw for use with EMT
Ships as an LB, but converts to a T, LL, LR or C

Includes

Threaded Flange

Specifications

Body Type:	LB
Capacity:	69-1/2 cu-in
Color:	Silver
Connection Type:	Threaded x Set Screw
Country of Origin:	CN
Dimensions:	10.73 in L x 4.67 in W x 3.5 in H
Hub Size:	2 in
Material:	Copper Free Die Cast Aluminum
