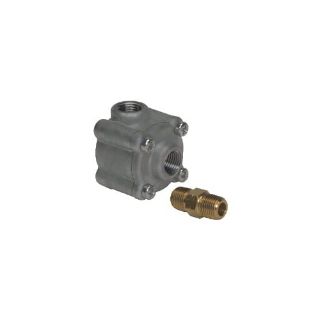

Actual Product May Vary From Image

945100 NEX

Name: 945100 NEX
Brand: Nexen
SKU: 945100 NEX
Price: 29.00 USD
Availability: InStock

Nexen® Air Champ® 945100 Quick Exhaust Shuttle Valve, For Use With Clutches and Bakes, 1/8 in NPT Port, 1/8 in Valve Orifice, In-Line Mount, 5 to 100 psi Operating Pressure, Polyurethane Valve Element, Die Cast Zinc

Manufacturer: Nexen

Manufacturer part number: 945100

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
2	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$29.00

Qty:

Product Details

Brand Name

Nexen®

Type

Quick Exhaust

Description

Nexen® Air Champ® Shuttle Valve, Quick Exhaust, For Use With: Clutches and Bakes, Specifications: 1/8 in NPT Port, 1/8 in Valve Orifice, In-Line Mount, 5 to 100 psi Operating Pressure, Polyurethane Valve Element, Die Cast Zinc, 1.2 in W x 1.1 in H Dimensions

Features

Quick exhaust valves improve response times by reducing the distance the exhaust air must travel
A 3 to 5 psi drop in line pressure causes the valve to exhaust the down stream pressure
Recommended when quicker exhausting reaction times are desired or the control valve is not close to device

Specifications

Dimensions:	1.2 in W x 1.1 in H
Material:	Die Cast Zinc
Specifications:	1/8 in NPT Port, 1/8 in Valve Orifice, In-Line Mount, 5 to 100 psi Operating Pressure, Polyurethane Valve Element
Suitable For Use With:	Clutches and Bakes
