Name: 945K1E2C RND
Brand: Rexnord
SKU: 945K1E2C RND
Availability: OutOfStock

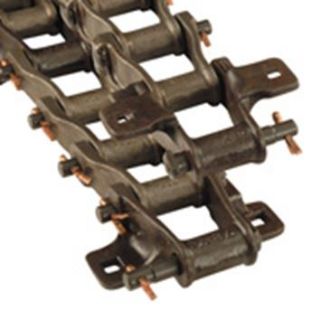

945K1E2C RND

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

945K1E2C

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Rexnord®

Specifications

Attachment Bolt Diameter:	10.00 mm
Attachment Bolt Hole Diameter:	0.19 in
Attachment Height Above Pitch Line:	0.44 in
Attachment Type:	K1
Attachment Width:	0.97 in
Barrel Diameter:	0.630 in
Chain Material:	Cast
Chain Pitch Average:	1.630 in
Distance Between Centerline Chain to Outside Edge of Attachment (Cross Pitch):	1.440 in
Distance Between Centerline Pin to Centerline Attachment Hole(s) (With Pitch):	0.690 in
Distance Between Centerline Pin to Top of Attachment:	0.440 in
Distance Between Chain to Attachment Hole 1:	1.060 in
Distance Between Pin to Attachment Hole 2 with Pitch:	0.690 in
Model:	945/455
Overall Attachment Width:	2.82 in
Overall Width:	2.8800 in
Pin Diameter:	0.31 in
Pin Head Length:	2.06 in
Pin Length:	2.06 in
Pin Material:	Steel
Recommended Maximum RPM for 12T Sprocket Max:	230.000 hp
Series:	945 Series Cast Chain
Sidebar Height Max:	0.75000 in
Sidebar Height with Attachment:	0.81 in
Working Load Rating:	830 lbf
