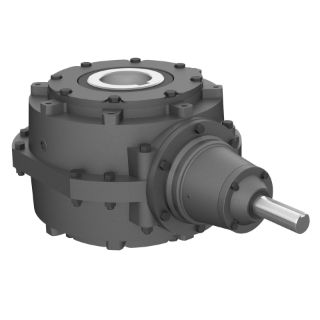

950 7.33/1 STD SP 4.438 HUB

Name: 950 7.33/1 STD SP 4.438 HUB
Brand: Hub City
SKU: 950 7.33/1 STD SP 4.438 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City , Hub City

Manufacturer part number:

0220-04562

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Spiral Single Reduction Style STD

Description

Regal Beloit offers a wide array of enclosed spiral or straight bevel gearing solutions with universal mounting for right angle transmission.

Hub City® Bevel Gear Reducer, Right Angle Spiral Single Reduction Style STD, Series: 950, 7.33:1 Gear Ratio, 86 hp, Shaft Input, Hollow Bore Output, 1-3/8 in Dia x 3-27/32 in L Input, 4.438 in Dia Output, 238.7 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 22703 in-lb, 18-17/32 in Centre Distance, 3/8 x 3/16 in Input, 1-1/8 x 9/16 in Output Keyway, 97.5 % Efficiency, Conventional Oil Lubrication, Surface Mount, Cast Iron, 27-17/32 in W x 16 in D x 11-1/2 in H

Application

Agriculture, Aerospace, Construction, Food Processing, Medical, Material Handling, Packaging, Recreation and Transportation

Standards

AGMA Class 1

Features

Rugged cast iron housing
Shaft mounted for direct mounting on drive shafts
Hub City® "counter flow" bearing lubrication system
Tapered roller bearings
Heavy duty industrial seals
Differential type spiral bevel (SP) gearing

Specifications

Centre Distance:	18-17/32 in
Dimensions:	27-17/32 in W x 16 in D x 11-1/2 in H
Efficiency:	97.5 %
Gear Ratio:	7.33:1
Horsepower:	86 hp
Input Maximum Speed:	1750 rpm
Input Size:	1-3/8 in Dia x 3-27/32 in L
Input Type:	Shaft
Keyway Size:	3/8 x 3/16 in Input, 1-1/8 x 9/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Mounting Type:	Surface
Output Maximum Speed:	238.7 rpm
Output Size:	4.438 in Dia
Output Type:	Hollow Bore
Series:	950
Torque Rating:	22703 in-lb
