980.159 LEE

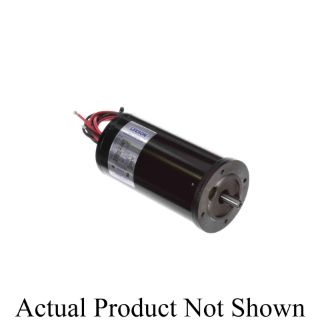

Picture of 980.159 LEE
Actual Product May Vary From Image

Product Details

Manufacturer:
Leeson Electric
Manufacturer part number:
980.159
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

LEESON®

Type

Continuous Duty Low Voltage

Description

LEESON® DC Motor, Continuous Duty Low Voltage, IEC Metric Motors Special Features, 0.05 kW Power, 12 VDC, 6.4 A, 3000 rpm Speed, TENV Enclosure, 56D Frame, 0.38 in Dia x 0.78 in L Shaft, Reversible Rotation, 1 Service Factor, 22.5 in-oz Torque, B14 Mounting, 40 deg C, Insulation Class: Class A, Zinc Plated Steel, 3.15 in Dia x 5.37 in L Dimensions

Application

Commercial and Industrial Applications

Features

IEC Metric Motors

Specifications

Amperage Rating:6.4 A
Country of Origin:US
Dimensions:3.15 in Dia x 5.37 in L
Enclosure Type:TENV
Frame:56D
Insulation Class:Class A
Material:Zinc Plated Steel
Mounting Type:B14
Power Rating:0.05 kW
Rotation:Reversible
Service Factor:1
Shaft Size:0.38 in Dia x 0.78 in L
Speed:3000 rpm
Temperature Rating:40 deg C
Torque Rating:22.5 in-oz
Voltage Rating:12 VDC
