9F60LJD512 FER

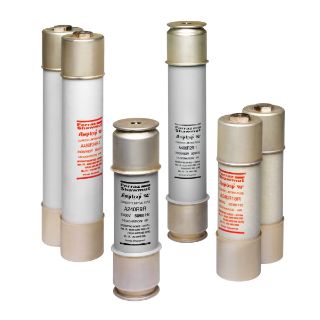

Picture of 9F60LJD512 FER
Actual Product May Vary From Image

Product Details

Manufacturer:
Mersen
Manufacturer part number:
9F60LJD512
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 25 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,426.14 / EA

Description

Brand Name

Mersen

Type

Type EJ2 1-Barrel Back Up Current Limiting Medium Voltage

Description

MERSEN R-rated fuses are current limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-rated fuses are back up fuses that have a minimum interrupting rating and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-rated fuse size. These fuses come with a 3 in (size D) or 4 in (size E) diameter barrels with ferrules and are mounted in spring reinforced clips.
Mersen, 9F60LJD512, Motor Protection Fuse, Type EJ2 1-Barrel Back Up Current Limiting Medium Voltage, Series: 9F60, Indicating, 12 A, 5080 VAC, 50 kA Interrupt, Class: R, 60 Hz Frequency, Clip/Ferrule Terminal, Ferrule Body, Epoxy/GMG, 3 in Dia x 15.97 in L Body

Application

For short circuit protection of medium voltage motors and motor controllers

Standards

IEEE Certified | UL 9F60 File No. E93367 | UL Listed File No. E191980

Features

  • 9F60 R-rated fuses are UL recognized
  • Ferrule mounting for standard clips and interchangeability with other brands of fuses
  • Current limiting for superior equipment protection
  • Metal embossed catalog number and manufacturing date for lasting identification
  • Blown fuse indicator to give positive identification of open fuse
  • 0.125 lb tripped force, 0.2 in for 9F60
  • Hook eye for non load-break isolation by hook stick

Specifications

Amperage Rating:12 A
Body Size:3 in Dia x 15.97 in L
Body Type:Ferrule
Class:R
Country of Origin:MX
Frequency Rating:60 Hz
Indicating/Non-Indicating:Indicating
Interrupt Rating:50 kA
Material:Epoxy/GMG
Mounting Type:Clip
Series:9F60
Terminal Type:Clip/Ferrule
Voltage Rating:5080 VAC
