9S 2 3/8 MSG

Name: 9S 2 3/8 MSG
Brand: Martin Sprocket & Gear
SKU: 9S 2 3/8 MSG
Price: 84.54 USD
Availability: InStock

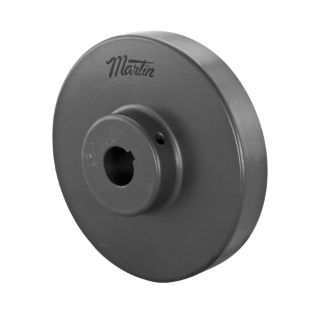

Martin Quadra-Flex® 9S 2 3/8 Bored to Size Type S Coupling Flange, 09 Coupling, 2-3/8 in Bore Dia, 2.406 in Length Through Bore, 3-5/8 in Hub Dia, Cast Iron

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 9S 2 3/8

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$84.54

Qty:

Product Details

Brand Name

Martin

Type

Bored to Size Type S

Description

Martin Quadra-Flex® is a proven design which offers long life, torsional flexibility, ease of installation, and withstands misalignment, shock, and vibration. Available in sizes 3 to 16 in bored to size, QD bushed, spacer type and plain bore for custom requirements.

Martin Quadra-Flex® Coupling Flange, Bored to Size Type S, 09 Coupling, 2-3/8 in Bore Dia, 3-5/8 in Hub Dia, 5/8 x 5/16 in Keyway, 3750 rpm Maximum, 2.406 in Length Through Bore, 3/8-16 x 3/8 in (Set Screw) Screw, Cast Iron

Features

Handles various combinations of shock, vibration and misalignment
No lubrication needed and easy to install
Precise machining and processes ensure consistent finish and high quality

Specifications

Bore Diameter:	2-3/8 in
Country of Origin:	US
Coupling Size:	09
Hub Diameter:	3-5/8 in
Keyway Size:	5/8 x 5/16 in
Length Through Bore:	2.406 in
Material:	Cast Iron
Maximum Speed:	3750 rpm
Screw Size:	3/8-16 x 3/8 in (Set Screw)
