A100P70-4 FER

Name: A100P70-4 FER
Brand: Mersen
SKU: A100P70-4 FER
Price: 202.83 USD
Availability: OutOfStock

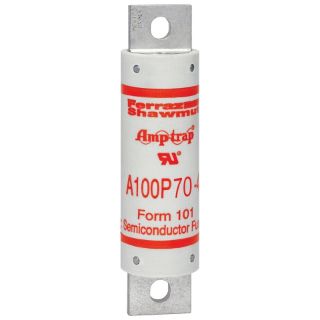

Actual Product May Vary From Image

Product Details

Manufacturer:

Mersen

Manufacturer part number:

A100P70-4

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

$202.83 / EA

Description

Brand Name

Mersen

Type

Current Limiting Fast Acting High Speed

Description

A100P Amp-Trap® Form 101 semiconductor protection fuses are rated 1000 V, extending the range of protection for UPS systems, AC and DC drives, reduced voltage motor starters and similar applications where lower I2t and superior reliability are needed. With ratings from 15 through 1000 A, a wide range of high voltage applications can be served.

Mersen AMP-TRAP® Semiconductor Fuse, Current Limiting Fast Acting High Speed, Series: A100P, Non-Rejection, 70 A, 1000 VAC, 750 VDC, 100 kA Interrupt, 25 ms Response, Bolted Terminal, Bolt Mounting, Cylindrical Body, Fiber, 1.22 in Dia x 5 in L Body

Application

For protection of UPS systems AC/DC drives, reduced voltage motor starters and other 1000 VAC or less semiconductor devices

Standards

RoHS Compliant | UL File No. E60314 | UL Guide No.JFHR2

Features

Low I2T minimizes damage to protected components on short circuit
Controlled arc voltage reduces stress to circuit components during fuse clearing
Wide range of ampere ratings
North American round style
Tin-plated copper, tin-plated brass and silver-plated copper contact

Specifications

Amperage Rating:	70 A
Body Size:	1.22 in Dia x 5 in L
Body Type:	Cylindrical
Country of Origin:	MX
Interrupt Rating:	100 kA
Material:	Fiber
Mounting Type:	Bolt
Rejection/Non-Rejection:	Non-Rejection
Response Time:	25 ms
Series:	A100P
Terminal Type:	Bolted
Voltage Rating:	1000 VAC, 750 VDC
