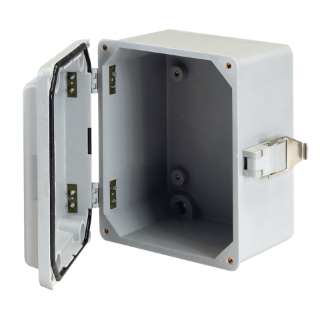

Actual Product May Vary From Image

A1287JFGR HOF

Name: A1287JFGR HOF
Brand: nVent HOFFMAN
SKU: A1287JFGR HOF
Price: 360.00 USD
Availability: InStock

Enclosure 12.00x8.00x7.00

Manufacturer: nVent HOFFMAN

Manufacturer part number: A1287JFGR

Availability: Expected Leadtime 5 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	1	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$360.00

Qty:

Product Details

nVent HOFFMAN

Fiberglass and Thermoplastic Wall Mounted Industrial Enclosures

Screw Cover Quick-Release Latch Type 4X, 11.50x8.00x6.70, Gray, Fiberglass

Corrosive Environments; Controls and Drives

Aluminum Panel:	A10P8AL
Color:	Light Gray
Color Code:	RAL 7035
Country of Origin:	US
Cover Style:	Solid Cover
Cubic Capacity:	615 cubic in
Depth:	7
Finish:	Smooth Matte
Height:	12 in
Inside Dimensions (Imperial):	11.50 x 8.00 x 6.69 in
Inside Dimensions (Metric):	292 x 203 x 170 mm
IP Rating:	IP66
Latch Style:	Screws
Material:	Fiberglass
Modification Services:	Yes
Mounting (Imperial):	10.75 x 6.00 in
Mounting (Metric):	273 x 152 mm
NEMA Rating:	4X Watertight, corrosion-resistant
Overall Dimensions (Imperial):	12.00 x 8.50 in
Overall Dimensions (Metric):	305 x 216 mm
Panel Size (Imperial):	8.75 x 6.88 in
Panel Size (Metric):	222 x 175 mm
Protection Rating:	NEMA Type 12
Size:	11.50x8.00x6.69 in
Steel Panel:	A10P8
Thickness (Imperial):	0.12 in
Thickness (Metric):	3 mm
Type Number:	Type 3R
Usage:	Able to withstand harsh environments, these small enclosures feature a simple, traditional non-metallic design that is suitable for a broad range of applications.
Weight (Imperial):	5.9 lb
Width:	8
