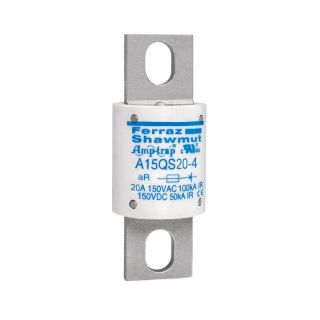

Actual Product May Vary From Image

A15QS20-4 FER

Name: A15QS20-4 FER
Brand: Mersen
SKU: A15QS20-4 FER
Price: 65.83 USD
Availability: InStock

Mersen AMP-TRAP® A15QS20-4 Round Style Semi-Conductor High Speed Fuse, 20 A, 150 VAC, 50/100 kA Interrupt, Cylindrical/Round Body

Manufacturer: Mersen

Manufacturer part number: A15QS20-4

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
8	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$65.83

Qty:

Product Details

Brand Name

Mersen

Type

Round Style Semi-Conductor

Description

A15QS Amp-Trap® form 101 semiconductor protection fuses were designed for the specific protection of diodes and other semiconductor devices rated 150 VAC/VDC. The A15QS product line's compact design is perfect for those applications that have limitations on available space.

Mersen AMP-TRAP® High Speed Fuse, Round Style Semi-Conductor, Series: A15QS, Non-Rejection, 20 A, 150 VAC, 50/100 kA Interrupt, 10 ms Response, Blade Terminal, Bolted Mounting, Cylindrical/Round Body, Ceramic/GMG, 1 in Dia x 2.66 in L Body

Application

For protection of AC/DC drives, UPS, rectifiers and other equipment of 150 VAC or less

Standards

CSA Certified | RoHS Compliant | UL 198L | UL Listed File No. E60314 Guide JFHR8 | UL Listed

Features

Low i2t minimizes damage to protected components on short circuit
Controlled arc voltage reduces stress to circuit components during fuse clearing
Choice of mounting types provides options for unique termination requirements
Fast acting
Current limiting
100 kA at 150 VAC, 50 kA at 150 VDC interrupt rating

Specifications

Amperage Rating:	20 A
Body Size:	1 in Dia x 2.66 in L
Body Type:	Cylindrical/Round
Country of Origin:	MX
Interrupt Rating:	50/100 kA
Material:	Ceramic/GMG
Mounting Type:	Bolted
Rejection/Non-Rejection:	Non-Rejection
Response Time:	10 ms
Series:	A15QS
Terminal Type:	Blade
Voltage Rating:	150 VAC
