Actual Product May Vary From Image

A3081605 LST

Name: A3081605 LST
Brand: Lutze
SKU: A3081605 LST
Price: 1.91 USD
Availability: InStock

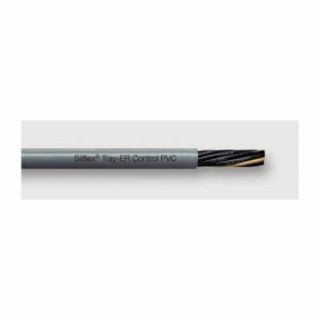

LUTZE A3081605 Unshielded Control Cable, 600 VAC, (5) 16 AWG Bare Stranded Copper Conductor

Manufacturer: Lutze

Manufacturer part number: A3081605

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	29
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.91

Qty:

Product Details

Brand Name

LUTZE

Type

Unshielded

Description

LUTZE Control Cable, Unshielded, 600 VAC, 5 Conductors, Bare Stranded Copper Conductor, 16 AWG Conductor, 0.37 in OD, 26/30 Strands, PVC/Nylon Insulation, PVC Jacket, Gray Jacket, -40 to 90 deg C

Application

For machine and device construction, transport and conveyor technology, HVAC technology, dry, moist and wet rooms

Standards

Features

Flexible wires with nylon for better resistance to pressure and impacts as per UL 1277
Easy stripping and fast installation
Very flexible flexibility for complex installation distances and small bending radii
Improved oil-resistance due to specifically developed PVC jacket
Direct burial for installation in the ground
Wind turbine tray cable for use in wind turbines, machine tool wire, power limited tray cable exposed run, instrumentation tray cable exposed run
Oil-resistant, silicone-free jacket characteristics
4xD minimum bending radius fixed
Black with white number print, green/yellow conductor marking

Specifications

Conductor Size:	16 AWG
Conductor Type:	Bare Stranded Copper
Insulation Material:	PVC/Nylon
Jacket Color:	Gray
Jacket Material:	PVC
Number of Conductors:	5
Outside Diameter:	0.37 in
Strands:	26/30
Temperature Rating:	-40 to 90 deg C
Voltage Rating:	600 VAC
