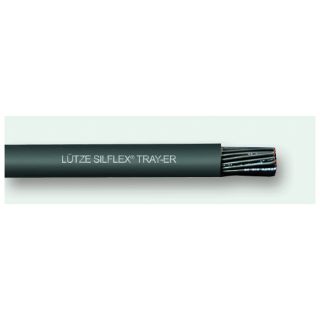

Picture of A3220804 LST
Actual Product May Vary From Image

A3220804 LST

LUTZE SILFLEX® A3220804 Tray-ER Unshielded Flexible Tray Cable, 600/1000 V, (4) 8 AWG Stranded Bare Copper Conductor
Manufacturer: Lutze
Manufacturer part number: A3220804
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$8.49

Product Details

Brand Name

Silflex®

Type

Tray-ER Unshielded

Description

LUTZE SILFLEX® Flexible Tray Cable, Tray-ER Unshielded, Series: A322, 600/1000 V, 4 Conductors, Stranded Bare Copper Conductor, 8 AWG Conductor, 0.744 in OD, 168/30 Strands, Nylon/PVC Insulation, PVC Jacket, Black Jacket, -40 to 90 deg C Static

Application

For machine tools, machine and plant construction, HVAC technology, assembly and production lines and other industrial applications

Standards

cUL TC and CIC FT4 | CE Certified | DP-1 | REACH Compliant | NEC Class 1 Division 2 per 336/392/501/502/505 | RoHS Compliant | UL Type MTW or DP-1/1277/TC-ER-JP Approved | UL Recognized | UL AWM Style 20886 | WTTC Approved

Features

  • Flexible control and tray cable for stationary applications
  • Multi-conductor cable for tray and control applications, with exposed run (open wiring) approval
  • Crush impact-resistant
  • Gas/vaportight sheath per UL 1277
  • Non-wicking fillers
  • Sunlight-resistant
  • Flame retardant
  • Direct burial (18 AWG and larger)
  • Talc and silicone-free
  • TC-ER for use with cable trays without conduit, which can reduce material and labor costs
  • WTTC - wind turbine tray cable rating for use in wind power generation
  • Flexible design with nylon for crush impact resistance per UL 1277 and easy installation
  • Specially formulated jacket for oil resistance
  • UL Type TC-exposed run

Specifications

Conductor Size:8 AWG
Conductor Type:Stranded Bare Copper
Country of Origin:US
Insulation Material:Nylon/PVC
Jacket Color:Black
Jacket Material:PVC
Number of Conductors:4
Outside Diameter:0.744 in
Series:A322
Strands:168/30
Temperature Rating:-40 to 90 deg C Static
Voltage Rating:600/1000 V
