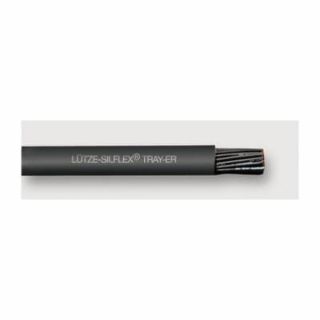

LUTZE A3221004 Unshielded Control Cable, 600 VAC, (4) 10 AWG Bare Stranded Copper Conductor
Manufacturer: Lutze
Manufacturer part number: A3221004
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$4.63

Product Details

Brand Name

LUTZE

Type

Unshielded

Description

LUTZE Control Cable, Unshielded, 600 VAC, 4 Conductors, Bare Stranded Copper Conductor, 10 AWG Conductor, 0.573 in OD, 105/30 Strands, PVC/Nylon Insulation, PVC Jacket, Gray Jacket, -40 to 90 deg C

Application

For machine tools, machine and plant construction, HVAC technology, assembly and production lines and other industrial applications

Standards

TC-ER | WTTC | cULus Listed | UL Type MTW or DP-1 | Class 1 Div. 2 per NEC Art. 336 | 392 | 501 | CIC FT4 | cUL TC | UL 1277 | CE Certified | REACH Certified | RoHS Compliant

Features

  • Flexible design with nylon for crush impact resistance per UL 1277 and easy installation
  • Specially formulated jacket for oil-resistance
  • Sunlight-resistant, direct burial, talc-free
  • Multi-conductor cable for tray applications, with exposed run (open wiring) approval
  • Compliant with NFPA 79 for machine tool wiring
  • TC-ER for use with cable trays without conduit, which can reduce material and labor costs
  • Wind turbine tray cable rating for use in wind power generation
  • Oil-resistant, silicone-free jacket characteristics
  • 4xD minimum bending radius fixed
  • Black with white number print, green/yellow conductor marking

Specifications

Conductor Size:10 AWG
Conductor Type:Bare Stranded Copper
Insulation Material:PVC/Nylon
Jacket Color:Gray
Jacket Material:PVC
Number of Conductors:4
Outside Diameter:0.573 in
Strands:105/30
Temperature Rating:-40 to 90 deg C
Voltage Rating:600 VAC
